Es un equipo mediano aunque un poco pesado considerando que requiere de dos baterías 18650, no cuenta con botones para ajuste pues se utiliza su pantalla táctil para navegar por su menú de opciones y/o realizar ajustes para conseguir la vapeada perfecta, muy al estilo de los teléfonos inteligentes deslizando el dedo sobre la pantalla y oprimiendo las opciones de navegación, un menú realmente intuitivo y fácil de utilizar aunque si algo extenso, aunque aparenta ser un equipo que consume mucha batería por su pantalla y funciones es un equipo que gestiona el rendimiento muy eficientemente.

Trabaja con dos baterías 18650 externas (NO INCLUIDAS), cuenta con un sofisticado sistema de control de temperatura que alcanza hasta los 150 watts de potencia (actualización a 200 watts en el futuro).  Cuenta también con la capacidad de llevar registro de tus actividades diarias como vapeador conectándose por medio de la aplicación móvil en un teléfono inteligente, además cuenta con la opción de cargar música y simplemente conectas tus audífonos a su entrada 3.5mm.

Características.-

• Medidas 32 x 45 x 91.5 mm.
• Pantalla 1.68 pulgadas TFT/CTP (pantalla táctil).
• Resolución 320 x 240 dpi.
• Salida de potencia  1 – 150 watts (actualizable).
• Modos de salida VW / VT(Ni, Ti, SS316)/ TCR.
• Rango de resistencias 0.05 – 1.5 ohm para VT / TCR.
• Rango de resistencias de 0.1 – 3.5 ohm para VW.
• Capacidad de memoria de 2GB.
• Requiere de 2 baterías 18650 (mínimo de 25A).
• Conexión 510 pin retráctil.

Incluye.-

• Ocular C Mod (sin baterías).
• Cable USB para carga y actualizaciones.
• Manual.

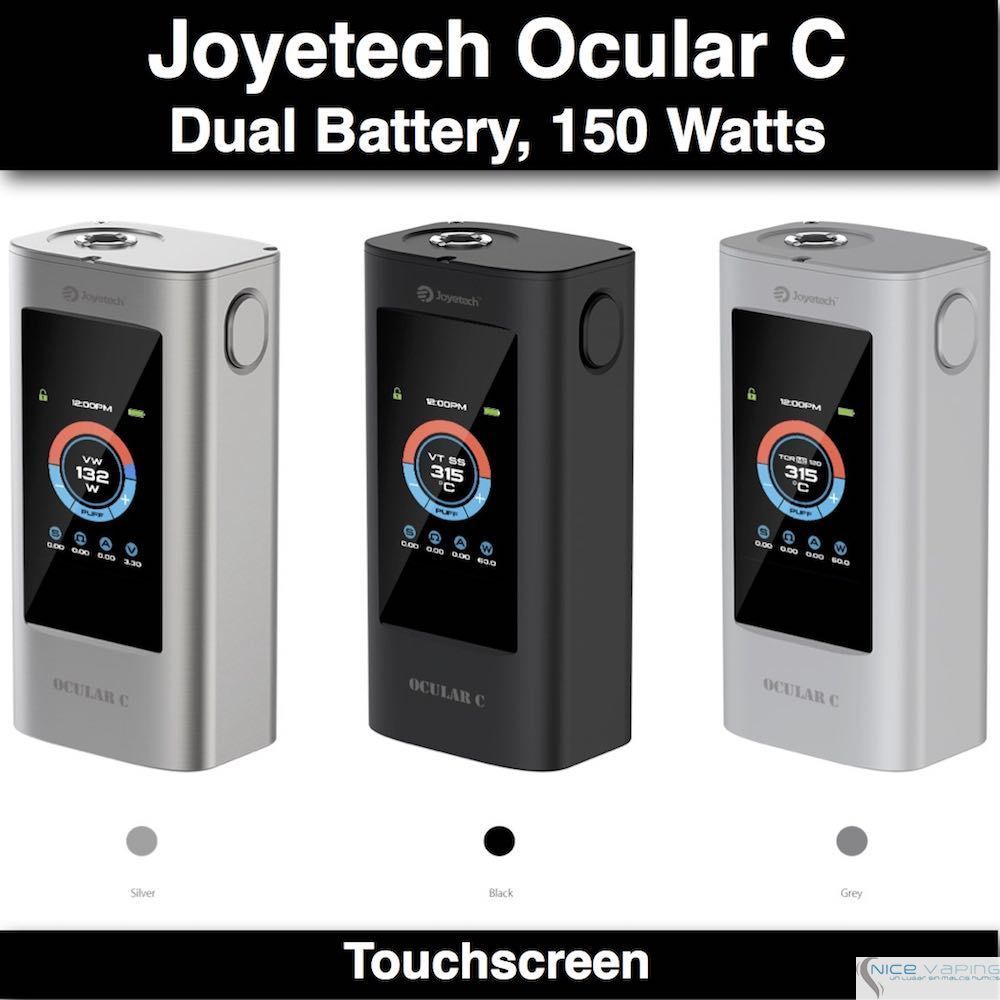

OCULAR C

Featuring the first and one of the most capable 1.68-inch color touchscreen, the new Ocular C presents all the essentials on its clear and precise display. It supports for custom screensaver with clock or images as you like. Powered by two replaceable 18650 batteries, Ocular C applies a sophisticated temperature control suite coupled with a 150W maximum output(will be available to upgrade to 200W). This anticipated device also makes it possible to track your daily activity and vaping habits by connecting to your mobile application. Plug in your headphone to enjoy the music. The one of a kind features enables you to stay cool, active and unique.

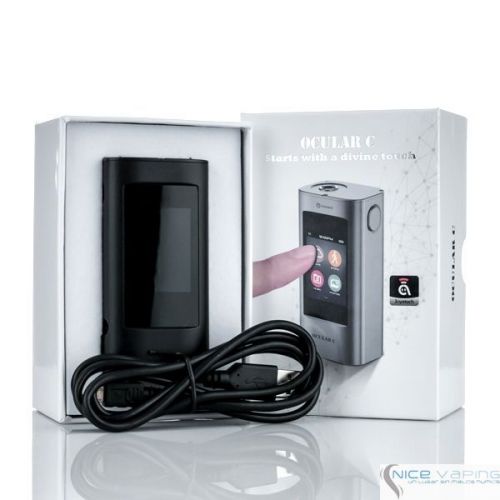

Standard Configuration:
1 * Ocular C (no cell)
1 * USB Cable
1 * Manual
1 * Warranty Card
1 * Warning Card

Specification:
Mod size: 32.00*45.00*91.50mm
Screen type: 1.68 inch TFT/CTP(Capacity Touch Panel) Screen
Resolution: 320*240 dpi
Output wattage: 1-150W(will be available to upgrade to 200W)
Output mode: VW/VT(Ni, Ti, SS316)/TCR Mode
Resistance range: 0.05-1.5ohm for VT/TCR mode
0.1-3.5ohm for VW mode
Temperature range: 100-315°C/ 200-600°F
Memory capacity: 2GB
Battery using: Two replaceable high rate 18650 cells (CDC25A)

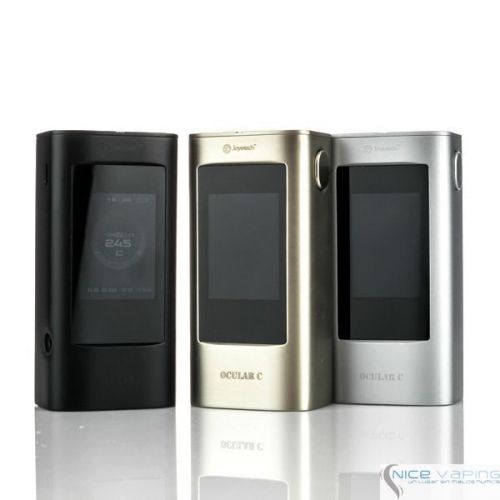

Colors: Silver, Black, Grey

Touchscreen technology with smart system

To achieve the ultimate vaping experience, we applied touchscreen technology into the Ocular series for the first time. Having a 1.68
inch CTP(Capacity Touch Panel) screen coupled with a smart operation system, the Ocular C is intuitively designed for ease of use.

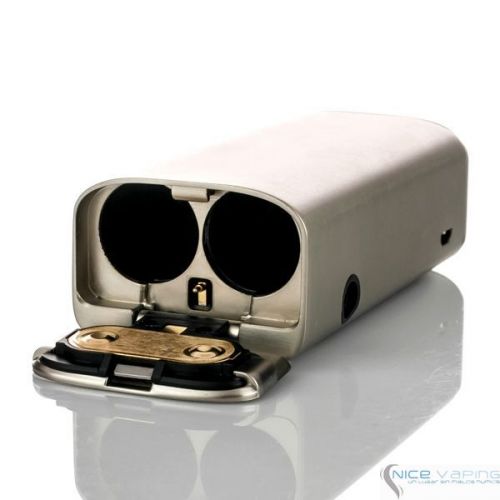

150W max output with dual replaceable batteries
(will be available to upgrade to 200W)
The Ocular C is powered by two replaceable batteries where maximum output can be reached to 150W (200W firmware will also be available in the future), making it powerful and convenient. We kindly recommend high-rate 18650 cells with continuous discharge current25A.

Slide to view photos

The Ocular C applies an interactive friendly interface. Just slide the screen down to switch to the home menu. Tap the photos icon to view the photos. Slide to the left or right to switch.

Low power consumption

Concise and clear interface with easy operation

Joyetech Ocular C has a concise and clear vaping interface, which is easy and convenient to operate. Simply slide the screen to the left or right to switch
between different modes. Tap +/- icons to adjust the wattage or temperature.
In order to avoid accidental touch, once you hold the fire button, touchscreen will be locked automatically. Slide the screen to the right to unlock.

Screensaver with more options

The Ocular C enables to set clock (digital/analog) and photo as screensaver. Use VT software to upload a photo (240*320 pixel limited in
jpg format) to the device. One photo each time, up to 100 photos. Once you set the photo as wallpaper, it'll be displayed when vaping.

Control your vaping habits

With touchscreen technology, you can check and control your vaping habits conveniently. Simply tap the puff icon, on whatever mode,
to check the puff counts. Continue to tap the setting icon on the bottom, you're able to check your puff history by day and to set the daily puff limit.

VT software for upgrading and uploading

Apart from system firmware upgrade, the VT Software for Ocular C also includes music and photos uploading.
Check the software and hardware version in the system settings.

Connect with your mobile APP

The Ocular C comes with the mobile APP where you can master your device via Bluetooth. It also enables to set your vaping plan,
check steps report, import photos to your device and even communicate with your friends, making it a total healthy community.

Exquisite 510 Stainless Steel Thread

Applied with 510 stainless steel thread and wide border fitting for large capacity atomizers.

Charging & Upgrading

We kindly suggest you take out the cells and charge them in a separate charger.
The micro USB port is on the top of the left side. Connect it with a micro USB cable to upgrade your device.
