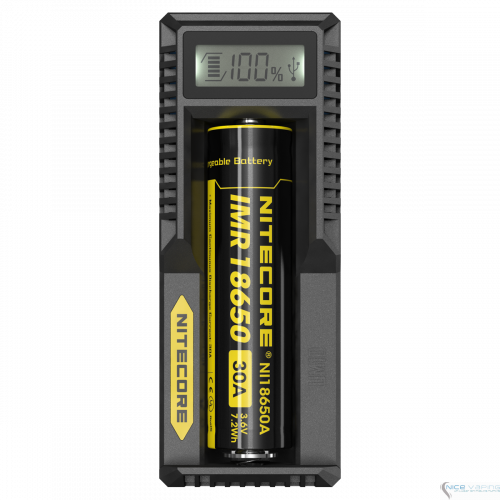

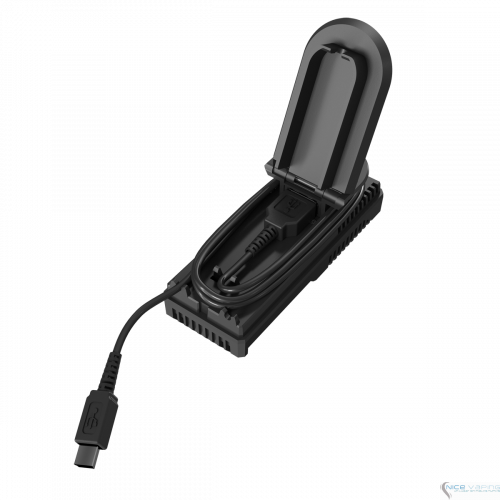

The single-bay UM10 USB Management and Lithium-Ion Battery Charging System from Nitecore is a versatile USB-powered charger for lithium-ion and IMR batteries. An intelligent power management system automatically detects the input power, evenly distributes charging power, and selects the appropriate charging current based on the battery installed in the bay. Besides charging batteries, this charger also provides output power from a standard USB port, enables data transfer throughput via the USB and micro-USB ports, and features an integrated USB cable winder. An integrated LCD screen clearly displays the charging status, battery power level, and output selection. Reverse polarity and over-charge protection prevents damage to the battery if it's installed incorrectly or left in the charger after charging is complete.
- Charging
-

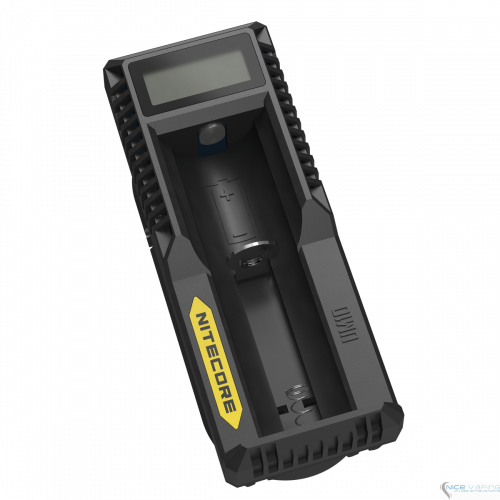

- Spring-loaded slider accepts different battery sizes and ensures a secure connection
- When full current is available, it will simultaneously charge battery and USB device
- When full current is not available, user can choose Battery or USB Priority modes
- Battery Priority: Battery is charge completely then switches to charge the device plugged into the USB port
- USB Priority: When device plugged into USB port is fully charged, it will switch and charge the battery second
- Selectable according to user preference
- Charging programs
- Detects battery and current status
- Automatically selects "constant current" or "constant voltage" depending on battery requirements
- Switches to "trickle charge" when battery is full to maintain a full charge
- Over-charge protection cut current to prevent damage to battery
- Functionality
-
- Allows data transfer from external USB device to computer using the standard and micro-USB ports
- Reverse polarity protection: Stops charging process if battery is installed incorrectly
- LED screen displays battery power level and charging status
- Lithium-Ion/IMR Battery Compatibility
-
- 18650
- 18490
- 18350
- 17670
- 17500
- 16340 (RCR123)
- 14500
- 10440
