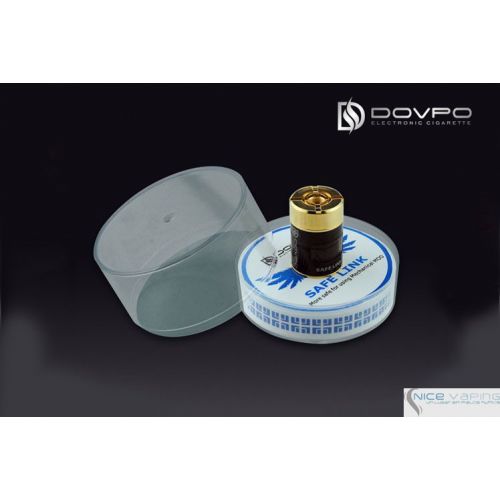

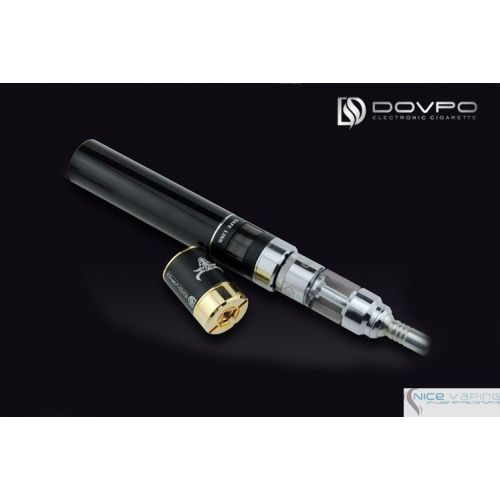

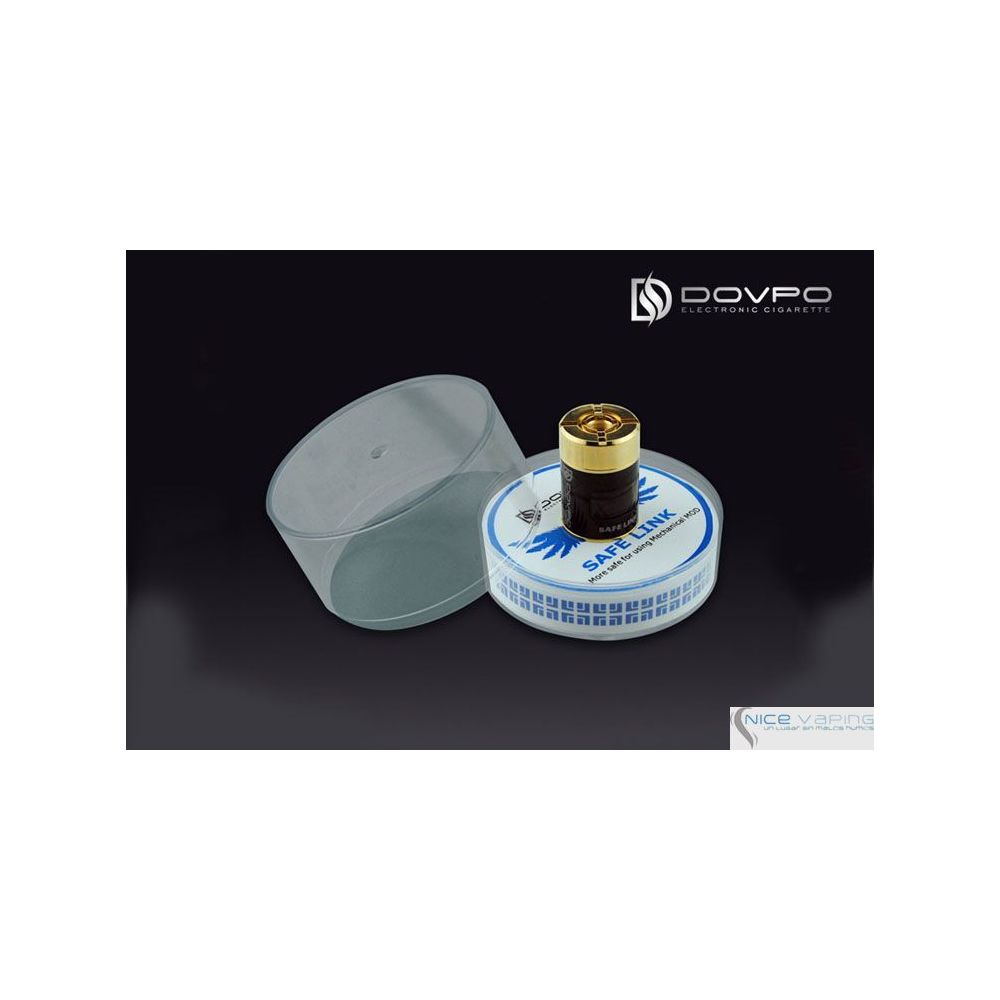

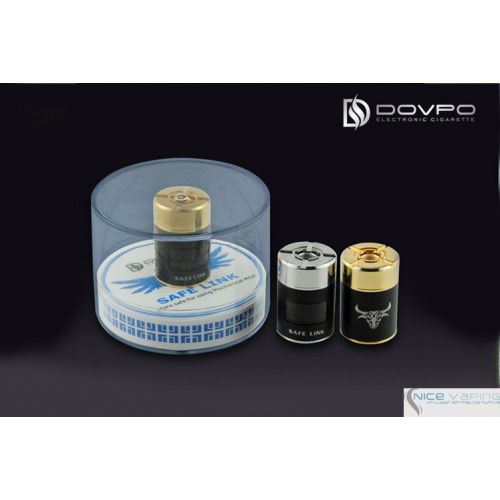

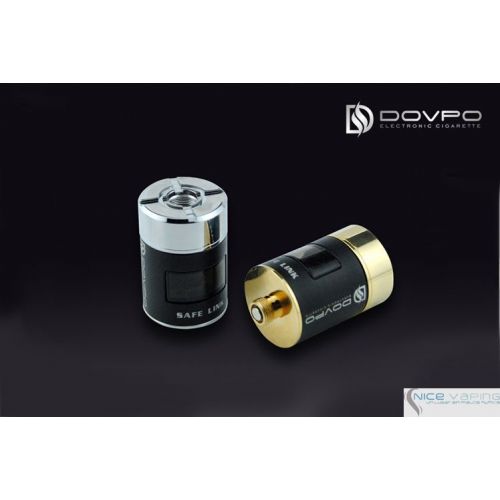

Safelink by Dovpo

The Safelink will be very popular since most people have a mechanical mod for using right now，but you know Mechanical mod is unsafe because have no protection chip.people never know what is the next dangerous happen for this mod Any Short circuit ,over vapor can make that happen if people no realize that.Safelink is all about the safety.


Specification:

1.Resistance Range:0.3ohm-9.9ohm

2.MAX 26  AMP output

3.Ohm and voltage checker built-in

4.Input voltage: 3.0V-4.5V

5.Battery Voltage Detection

6.Resistance Load Detection

7.10 seconds over vaping cut off

8.Short circuit protection(F2)

9.Low Voltage protection (2.5V low voltage protection)

10.Safe link can contrast the different specification battery is good or no BY checking the Voltage-Drop
Using same MOD,test the two different 18650 batteries,the less Voltage-Drop one is better than the larger one

11.safe link can contrast the different MOD which one is better BY checking the Voltage-Drop
Using same battery,test the two different mechanical mod ,the less Voltage-Drop one is better than the larger one

What's the Voltage-Drop?

For example:

Without atomizer,the battery is 4.2V. with the atomizer,the battery change into 3.3V.
4.2-3.3=0.9V. this different we call the Voltage-Drop

See below pictures:

12.Replaceable 510 threading
