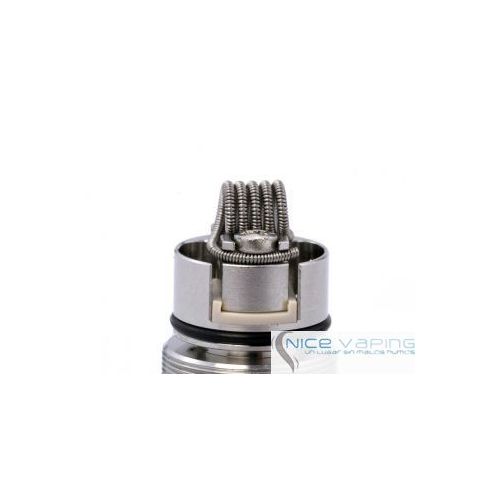

The Deck:

The deck on the Kayfun V5 is like we expect it from a Kayfun:
Easy to build on and incredibly effective when it comes to make high performing coils.

The deck is now even bigger than on the V4, but still has a two-post design that allows for many different coil set-up's and, as with all Kayfuns, the deck is optimised for use with cotton but you can of course use silica etc. as well.

A true innovation is the way you tighten the wires. Two slots have been milled out and you stick your wire under these and then tie them with the screw.

The juiceholes into the deck has been expanded to give you an even more dense and tasteful vape.

The deck is accesable without having to empty your tank. This means that you can change or adjust your coils without loosing a tankful of e-liquid.

The chamber is reduced and re-designed to provide an even more flavourful vape. Anyone who knows the Kayfun 4 will understand how groundbreaking this is, as the taste from this is already exceptional.

It is however true. You will be surprised! Precisely as you would expect from SvoëMesto.


The AFC (Air Flow Control):

The AFC on the Kayfun V5 has 4 settings based on earlier Kayfun models:

• 1: 1.8mm (Kayfun LitePlus)
• 2: 2.2mm (Kayfin 4)
• 3: 2.7mm (Kayfun 4S)
• 4: 3.2mm (Largest airhole to date in a Kayfun)

The AFC is easily adjustable. Pull the bottom of the tank up and twist. Slots in the base will then be visible and tell you which setting is chosen.

This is the perfect tank for both mouth-to-lung and direct-lung vaping.


Top filling of the tank:

The Kayfun V5 is filled from the top.
Anyone with even a bit of knowledge about vaping knows what a big thing this is!

Before filling the tank you must close off the juiceflow to prevent liquid entering the chamber of the RBA.

Simply remove the top cap by grabbing underneath the drip tip and unscrewing it. Then you fill juice into the holes - but not the middle hole! When the tank is full you simply screw the top cap back on and you are ready to vape on!

The stainless steel tank will hold aprox. 5 ml and the Quatz tank will hold aprox. 4.5ml of e-juice.

Then you simply open the juice flow again...and vape on!

Juice-flow control:

The juiceflow is fully adjustable on the Kayfun Mini V3 by simply twisting the bottom of the tank: Grab hold just underneath the glass and turn the piece with the airholes.

This opens or closes the juice channels and allows you to adjust the juiceflow to your coil/Ohm/Watt/liquid.

In other words you can fine tune your vape 100%.
In other words: Pure SvoëMesto brilliance!

*Remember to close of the juiceflow when filling the tank.

The Kayfun V5 comes with a very thorough user manual in English and German.

Technical features

• Anti-heat driptip with POM inlay (engraved)
• Top filling
• • Quartz-tank: Aprox. 4.5ml.
  • Steel tank: Aprox. 5ml.
• Quartz glass
• Liquid control (fully adjustable)
• enlarged build deck -> comfort building
• M2 build screws
• PEEK insulator
• Increased maximum liquid flow
• External airflow control
• Increased maximum airflow

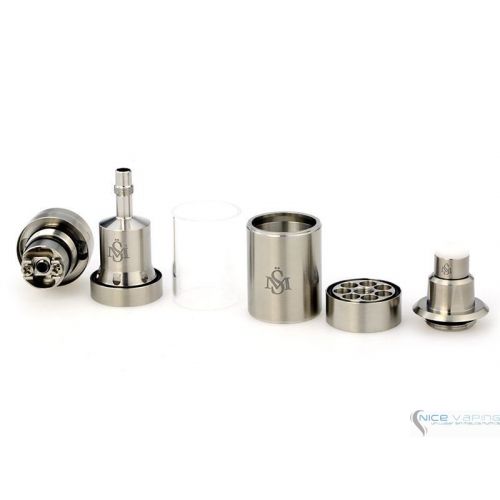

• Easy assembly and maintenance
• • Easy access to the deck without having to empty the tank.
  • Two post deck design.
  • PEEK Insulators.
  • 510 drip tip compatible.
  • Insulated stainless steel/POM-C drip tip included.
  • 316L stainless steel
• Size: Diameter 22mm, height 60mm. (without drip tip).

Measurements

• Diameter: 22mm
• Height: 60mm (without mouthpiece)
• Tank capacity: glass tank ~4ml, steel tank ~5ml

Materials:

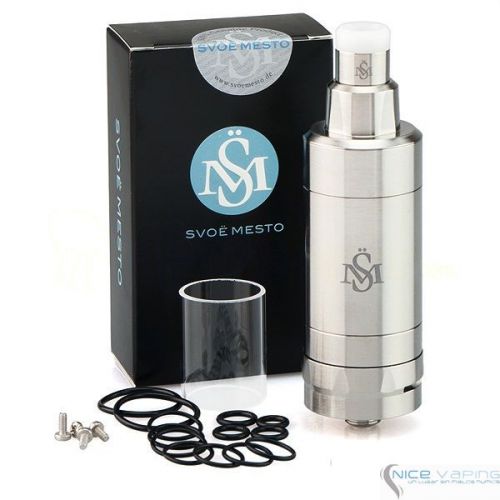

Package Contents:

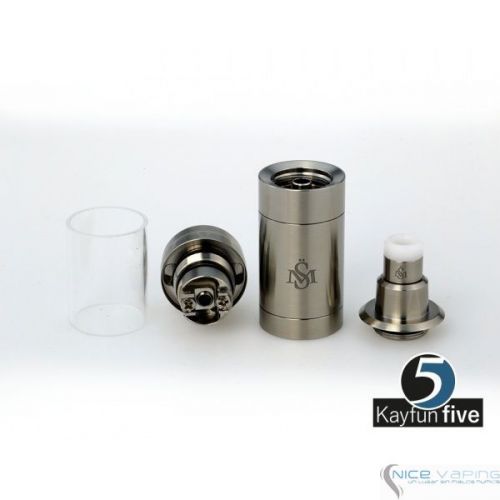

• 1 Kayfun 5 with engraved steeltank
• 1 glass tank
• 1 spare kit
• 1 user manual

Video : https://youtu.be/osdrgxne0zY
