Joyetech Cuboid Tap with ProCore Aries - 2 and 4 ml, 228W, dual 18650

New product

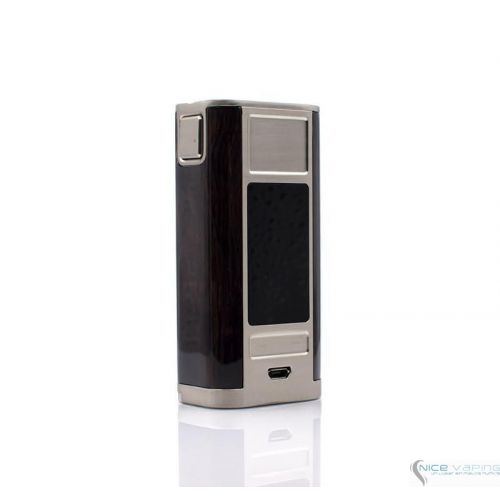

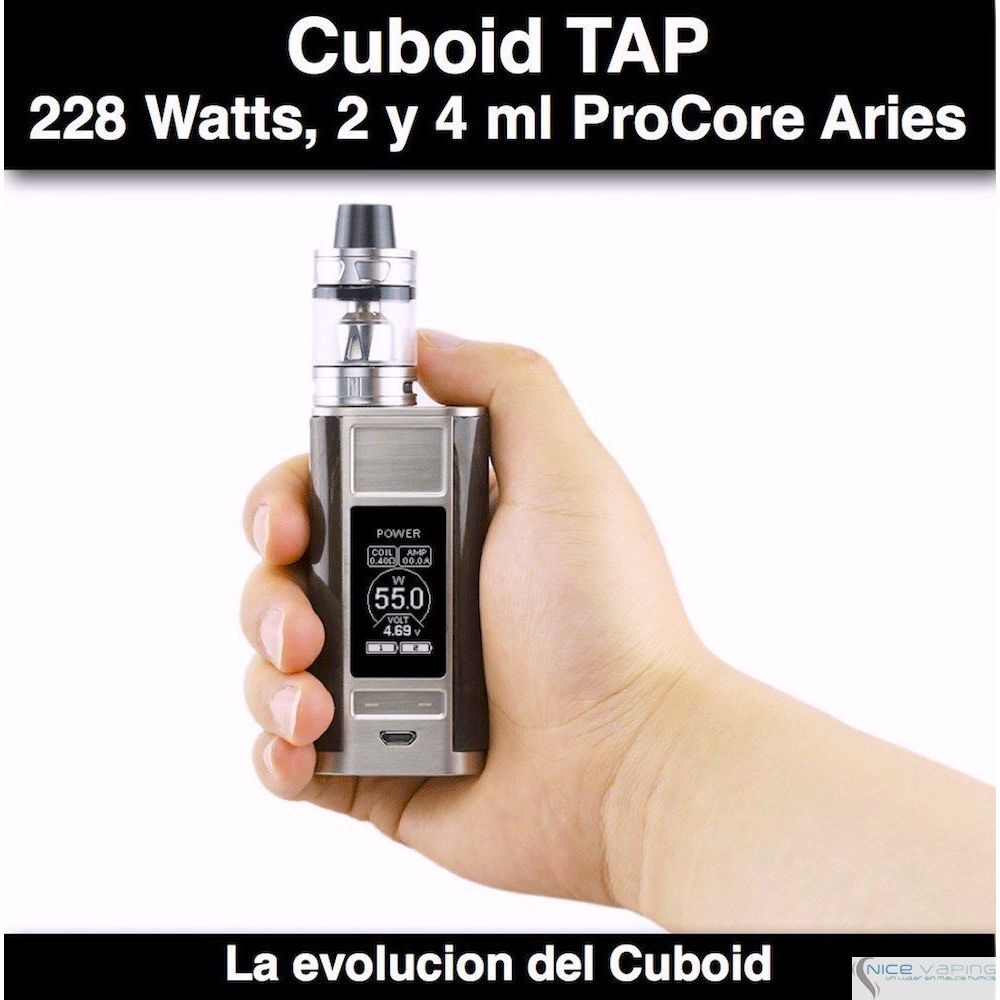

The Joyetech Cuboid Tap Starter Kit is a unique touchpad temperature control mod. The Cuboid Tap utilizes TAPTECH technology which features touchpad fire and adjustment buttons. The Cuboid Tap features a pressure sensitive touchpad system which provides vibration feedback. The Cuboid Tap is a dual 18650 battery mod that fires up to 228 watts and supports nickel, titanium and stainless steel 316 in temperature control mode.

Batteries not included.

More details

By buying this product you can collect up to 200 loyalty points. Your cart will total 200 loyalty points that can be converted into a voucher of MXN $ 40.00.


MXN $ 2,000.00

Pagos en :
Pagos en :

Add to wishlist

More info

CUBOID TAP with ProCore Aries
Joyetech Cuboid Tap with ProCore Aries Starter Kit

The Cuboid Tap also has a bypass mode, preheat function and stealth function as well. The Cuboid Tap features a comfortable and lightweight chassis designed for an all day vaping experience. The Cuboid Tap requires (2) high amp 18650 batteries (sold separately) and may be charged at an improved 2.0A rate using the included QC USB cable.

The ProCore Aries Sub-Ohm Tank is a well balanced tank designed for mouth to lung and direct lung users. The ProCore Aries uses a convenient flip open top fill design for easy and secure refills. The ProCore Aries features dual adjustable airflow slots for increased vapor production. This tank includes (1) ProC1 0.4ohm atomizer head and (1) ProC4 0.15ohm atomizer head which are designed for a direct lung vaping experience. The ProCore Aries is designed to have a well balanced production of flavor and vapor that is sure to please both beginners and veterans.

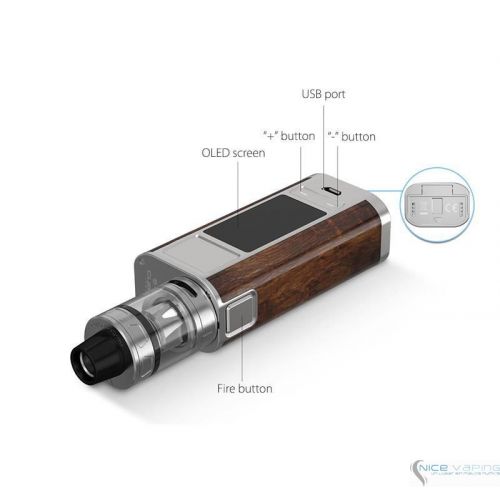

Features and Specs for Cuboid Tap:

  • Utilizes Joyetech TAPTECH Technology
  • Pressure Sensitive System and Vibration Motor Feedback
  • Dimensions: 3-3/8" x 1-5/8"x 1-1/8"
  • Comfortably Fits 25mm and Smaller Tanks
  • Spring Loaded 510 Contact Pin
  • Temperature Control: Nickel, Titanium, Stainless Steel 316 and TCR Mode
  • Output Wattage: 1 - 228W
  • Temperature Control Range: 100 - 315C / 200 - 600F
  • Resistance Range: 0.05 - 1.5ohm for Variable Temperature Mode
  • Resistance Range: 0.1 - 3.5ohm for Variable Wattage and Bypass Mode
  • Bypass Mode
  • Preheat Function
  • Custom Logo
  • Real Time Clock
  • Stealth Function
  • 1.3" OLED Display Screen
  • Requires (2) High Amp 18650 Batteries (Sold separately)
  • *External charger recommended for Optimal Charging*
  • Micro USB Port for Firmware Updates and Charging
  • Maximum Charging Current: 2A
  • Flip Open Battery Door Cover
  • Upgradeable Firmware
  • Dual Circuit Protection
Features and Specs for ProCore Aries:

  • Dimensions: 2" x 1" (Including Drip Tip and Threads)
  • 25mm Diameter
  • 510 Threaded
  • 4.0ml e-Liquid Capacity
  • Flip Open Top Fill Design
  • Dual Airflow Slots
  • Adjustable Airflow Control Valve
  • Airflow Design Allows for a Balance of Flavor and Vapor
  • Utilizes Joyetech ProC Series Kanthal Atomizer Heads for Variable Wattage
  • Includes (1) ProC1 0.4ohm Dual Coil Atomizer Head for Direct Lung (DL) (40 - 80W)
  • Includes (1) ProC4 0.15ohm Octuple Coil Atomizer Head for Direct Lung (DL) (50 - 110W)
CUBOID TAP with ProCore Aries
TAPTECTM technology changes what matters
We historically removed the physical regulatory buttons, instead, we creatively bring you the new Joyetech
TAPTECTM technology. Simply tap the panel, then it's all under your control.
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries
Introducing the much anticipated CUBOID TAP furnished with Joyetech TAPTECTM technology. We creatively developed the TAP buttons, paired with the pressure-sensitive system and vibration motor. It is powered by dual replaceable 18650 cells with which you can fire it up to the ultra 228W. Originated from the 12 signs, the ProCore Aries atomizer features an innovative flip type top-fill system, allowing to refill with great ease. There's a plenty of choices for you to choose from the ProC series heads, direct lung or mouth to lung, for massive vapor production and optimal flavor. CUBOID TAP is backed with upgradeable firmware and multiple functions such as 2.0A quick charge, 1.3 inch OLED display, clock, custom logo, preheat and reverse charging. With the new TAP buttons, the CUBOID TAP will redefine what you can expect out of your vaping.
CUBOID TAP with ProCore Aries
Standard Configuration:

1 * CUBOID TAP (no cell)
1 * ProCore Aries atomizer
1 * ProC1 (0.4ohm) head
1 * ProC4 (0.15ohm) head
1 * Spare glass tube
1 * QC USB cable
2 * Manual
1 * Warranty card
2 * Warning card
Spare parts
CUBOID TAP with ProCore Aries
Parameter:
Size: 28.0mm*41.0mm*134.0mm
Colors: silver, black, red, yellow, blue
Weight: 174.5g (with coil, without cell)
Aries capacity: 4.0ml/2.0ml
Output mode: Power/Clock/Temp (Ni, Ti, SS316)/TCR (M1/M2/M3)/USB Charge mode
Applicable heads: ProC series heads
Features: TAPTECTM, pressure-sensitive, vibration motor, 2A QC,
power bank, preheat, custom logo, real-time clock
Output range: 1-228W
Depth of 510 pins applicable: 4.0-5.5mm
Resistance range: 0.05-1.5ohm under Temp/TCR mode
 0.1-3.5ohm under Power/Clock mode
Temperature control: 100-315°C/ 200-600°F
Battery using: dual married high-rate 18650 cells
 (continues discharge current 25A)
Max charging current: 2.0A
Max output current: 50A
Pressure-sensitive capability applied

Thanks to the advanced technology in our time. The CUBOID TAP adopted the pressure-sensitive system inside, with which you can active the menu by clutching the device in sequence.
Power on condition:
3 times to lock/unlock tap buttons
4 times to activate the menu
5 times to turn stealth on/off

Power off condition:
3 times to set TCR value
4 times to turn screen upside down
5 times to check battery voltage
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries
Vibrates once taps

The vibration motor is built in such a way that it is partially off-balanced. Once you tap the panel,
it vibrates to indicate that the adjustment is made.
Flip type top-fill design

Simply push and pull the top cap to reveal the filling hole then you're free to fill the e-liquid. Simple and convenient.
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries

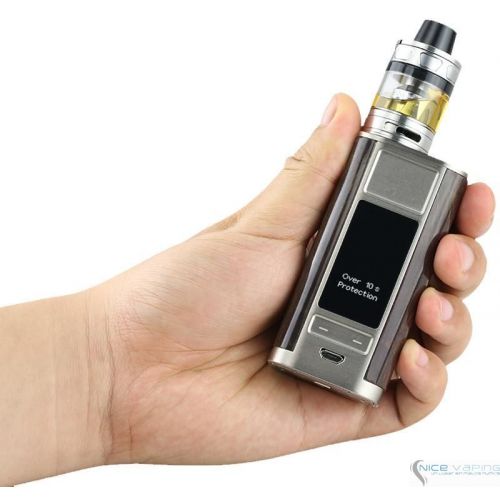

Vape in a safe way

For safety reasons, if you hold the fire button for 10 seconds, the device will shout down automatically. Press the fire button 5 times to turn it on again.
228W with 50A maximum output current
The CUBOID TAP is powered by dual 18650 high-rate batteries where max output can be reached to 228W. It
offers more possibilities when using various coils with its 50A maximum output current.
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries
Balanced flavor and clouds
The bold airflow structure on the ProCore Aries atomizer was designed to deliver massive vapor production without
compromising its optimal flavor using with the brand-new ProC series heads.
Detachable structure, easy to clean
The ProCore Aries atomizer can be easily detached and is able to wash separately.
CUBOID TAP with ProCore Aries
2ml version also included
Apart from the normal 4.0ml e-liquid capacity, we also have 2.0ml version which is TPD regulated.
CUBOID TAP with ProCore Aries
Equalizing charge system
Equalizing charge technology was applied in order to bring all cells to an equal state of charge.
CUBOID TAP with ProCore Aries
Innovative buck-boost technology
The CUBOID TAP adopts the innovative buck-boost technology to provide much steadier output power.
CUBOID TAP with ProCore Aries
Quick charge system
The CUBOID TAP has 2.0A maximum charging current with which it can get fully charged more quickly than normal ones when using the Avatar quick charger (sell separately).
CUBOID TAP with ProCore Aries
Power bank for reverse charge

The CUBOID TAP can be served as a power bank to charge other e-cigarettes or electronic devices. Install the new reverse charging adapter (sell separately) on the 510 connector.
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries Onboard reverse polarity protection

The onboard reverse polarity protection protects the device from damage in the event of reverse battery installation.
Dual circuit protection

It applies two sets of battery protection circuit system, realizing overall battery protection of over-charging, over-current and over-discharging, which makes it more safe and reliable.		 CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries
Applicable for various tanks

The exquisite spring loaded 510 connector of the CUBOID TAP is applicable for tanks with 510 length ranged at 4.0mm to 5.5mm.Tanks are also free to go up to 25mm diameter as you prefer.
Upgradeable firmware

CUBOID TAP comes with the upgradeable firmware.
Having the latest firmware, real-time clock, preheat, custom logo, and reverse charging are all available.
CUBOID TAP with ProCore Aries
CUBOID TAP with ProCore Aries

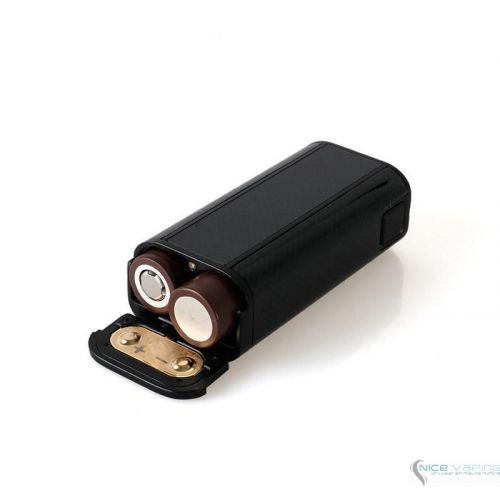

Charging
Please always use married high-rate 18650 cells, don't mix with different brands. The CUBOID TAP adopts new equalizing charge system which
supports quick charge capability with max charging current up to 2.0A. You can also take out the cells and charge them in a stand alone charger.
CUBOID TAP with ProCore Aries
